COMING SOON!
WHAT IS B'SAFE?
The first automatic wearable airbag vest that protects cyclists in case of fall or accident.
HOW IT WORKS
The vest uses a smart algorithm that follows motion in context and detects an accident. When an acccident or a fall is detected the airbag deploys automatically protecting the cyclist well before impact.
The system analyzes motion in context.
1
2
The vest
and the saddle sensors analyze the situation; detecting an accident.
The system
has detected an accident and triggers the airbag automatically.
3
4
The cyclist
is protected before the impact and the airbag absorbs the shock.

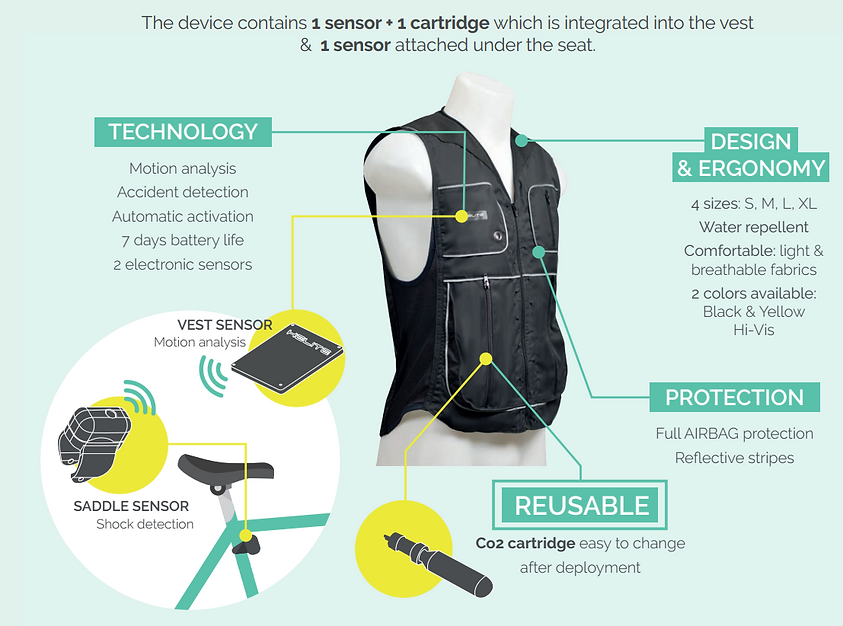

THE ELECTRONIC SYSTEM
The system uses an algorithm and two sensors which are able to distinguish cyclists’ common movements in an accident. The CDU sensor (crash detection unit), located inside the vest, analyzes cyclists’ motion in real time and the SDU saddle sensor detects the shock. When an abnormal move or a shock is detected both sensors communicate with each other and analyze the situation.
If an accident is detected, the airbag inflates in 80 ms and the cyclist is protected.
TECHNICAL FEATURES
FITTING
Note: Please measure in full riding gear.
For the steps 2 to 5 the
vest must always stay open
or switched off.
!

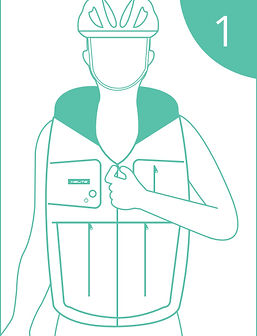

1 Take off the vest
2 Open the pocket on the right
3 Remove the empty cartridge
4 Remove the air inside the vest by pushing with your 2 hands.
5 Install new cartridge.
Do not damage the cable while screwing the cartridge. Only connect the cartridge once it is entirely screwed (see example on the scheme below).
!
!
The cartridge must be screwed entirely. Do not apply too much pressure when screwing in the cartridge.
6 Close the pocket
7 Reuse the B'SAFE Airbag
REUSE B'SAFE AFTER INFLATION
ANY QUESTIONS?
